SEMI GANTRY • DOUBLE GIRDER CRANE

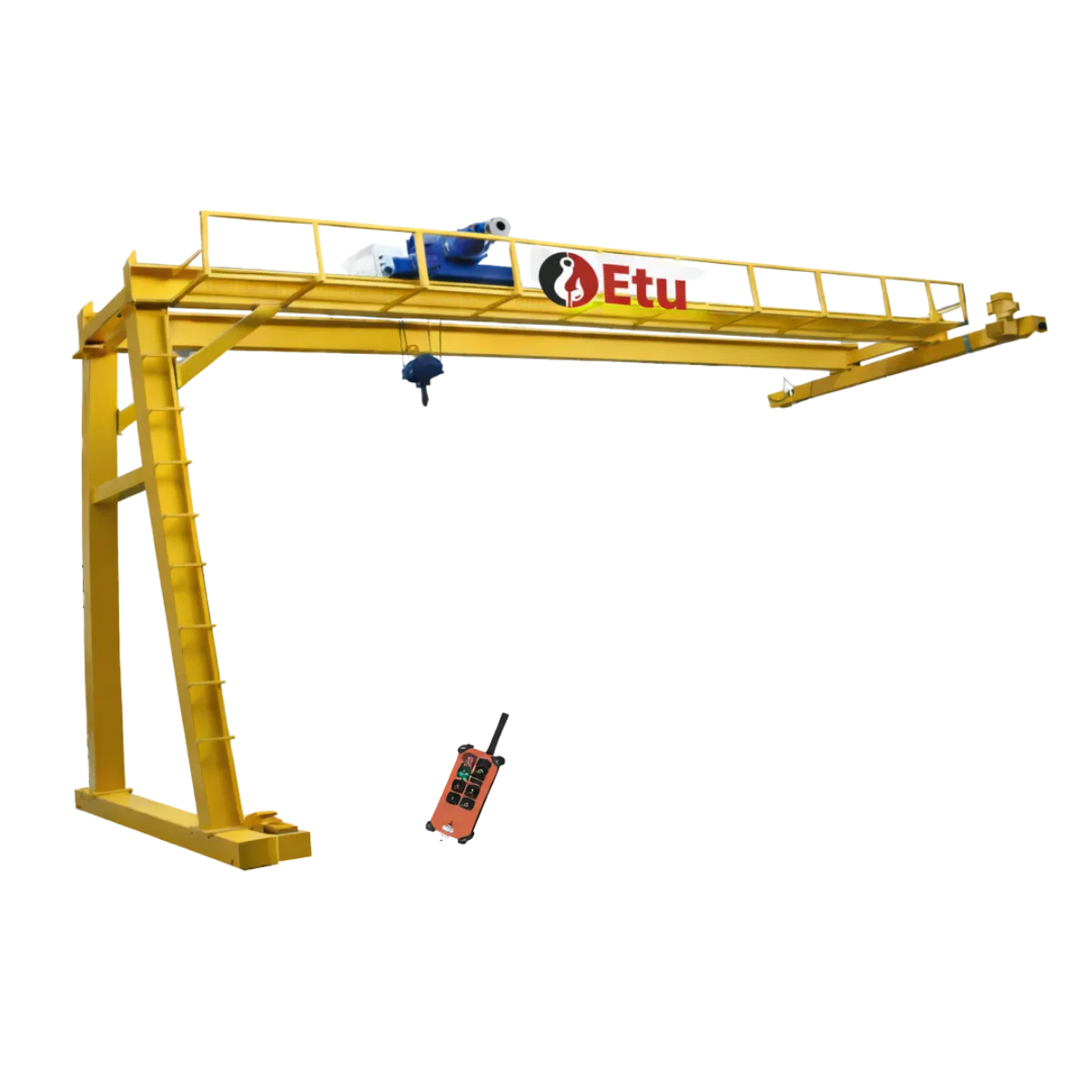

Semi Gantry Double Girder Crane — Heavy-Duty Material Handling
ETU Cranes Semi Gantry Double Girder systems combine the strength of a double girder structure with flexible ground-supported travel. Designed for demanding industrial lifting, this solution is ideal where overhead runway is limited or where one side needs floor rail support. Perfect for workshops, production facilities, steel handling areas and maintenance bays.
Tip: Share your load weight (kg), travel length (m), lifting height (m), and rail/runway details. We’ll propose the right YPV configuration.
Product Overview
A semi gantry double girder crane runs on an elevated runway on one side and a floor rail on the other, making it a practical solution when full overhead runway installation is not possible. With double girder rigidity and stable travel, it supports heavy loads safely and efficiently.
This configuration is widely used as an industrial lifting solution for steel materials, heavy components, molds, machine parts and repetitive handling operations.
Where It’s Used
Key Features & Safety
Technical Specifications (YPV Models)
| Specification | Unit | YPV-3 | YPV-5 | YPV-8 | YPV-10 | YPV-12.5 | YPV-16 | YPV-20 | YPV-25 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | kg | 3,000 | 5,000 | 8,000 | 10,000 | 12,500 | 16,000 | 20,000 | 25,000 |
| Lifting Speed | m/min | 4 | 4 | 4 | 3.8 | 3.6 | 3.4 | 3 | 3 |
| Lifting Motor Power | kW | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 |
| Gantry Travel Speed | m/min | 10 | 10 | 10 | 9 | 9 | 8 | 8 | 8 |
| Gantry Motor Power | kW | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 |
| Rope Diameter | mm | 10 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| Lifting Height Options | m | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 | 6 / 9 / 12 / 15 / 18 |
Frequently Asked Questions
What is a semi gantry crane?
Why choose double girder for a gantry configuration?
Can you customize rail length and lifting height?
What safety systems are included?
What info should I send for a quotation?
Do you provide installation support?
Request a tailored industrial lifting solution
Share your capacity, rail length and lifting height needs. Our engineers will prepare a technical proposal and quotation.
